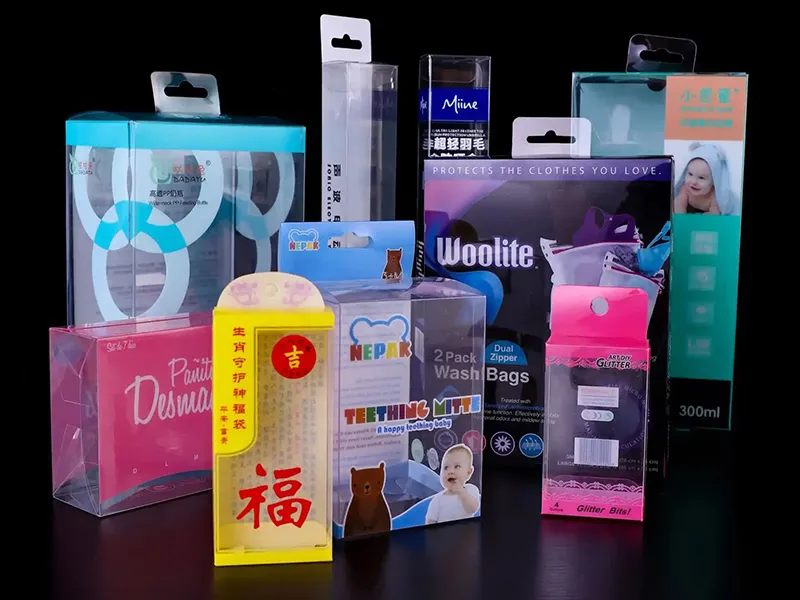

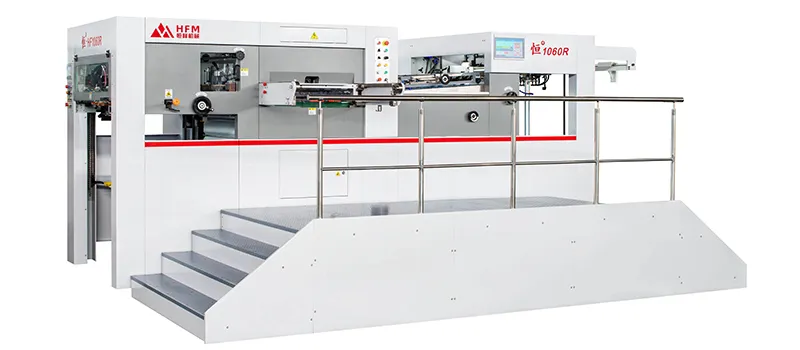

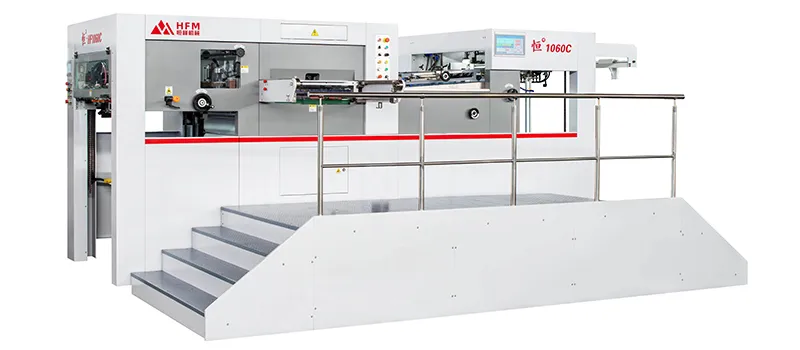

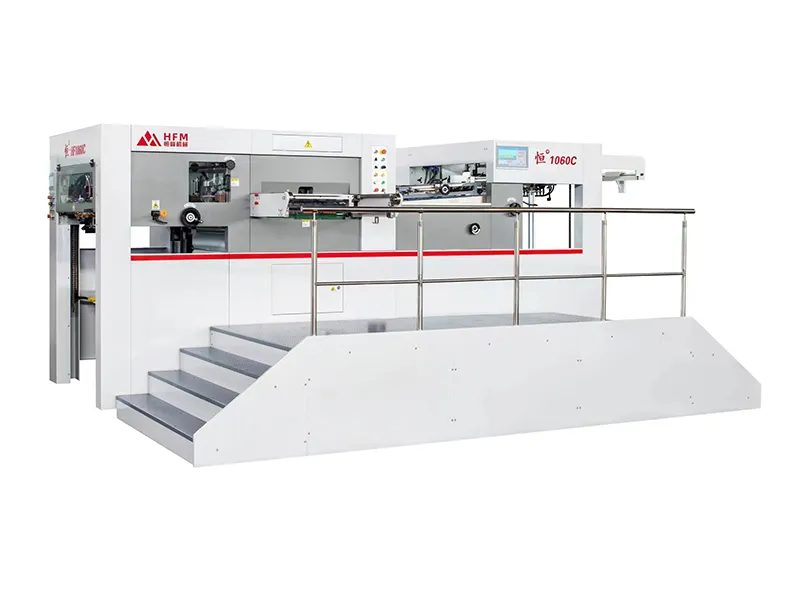

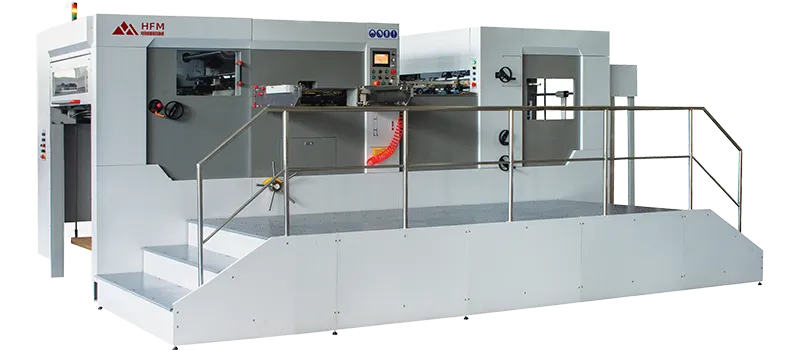

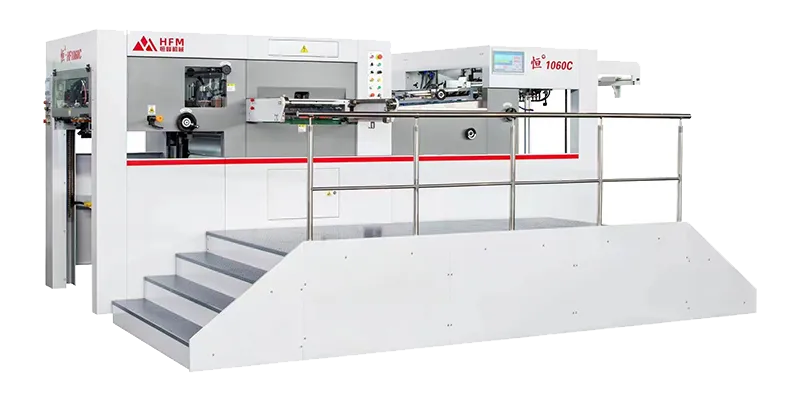

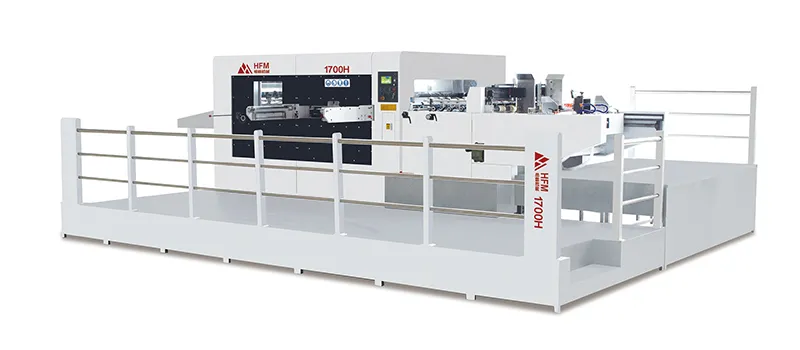

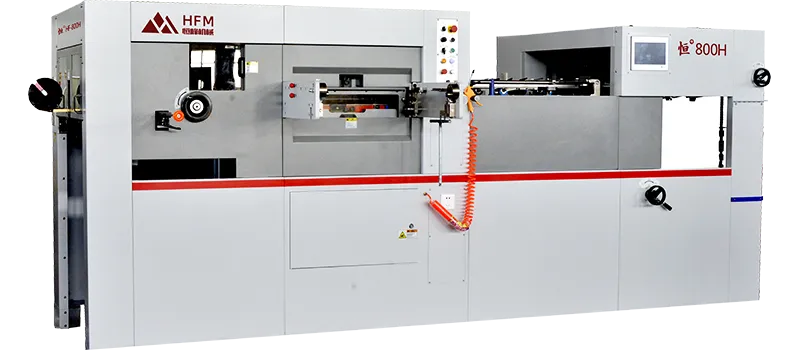

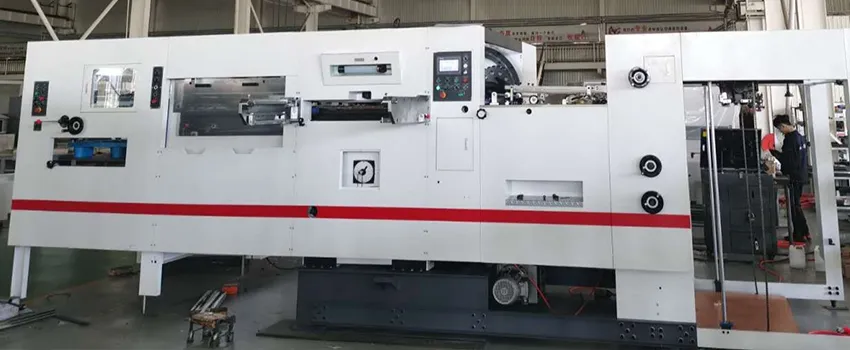

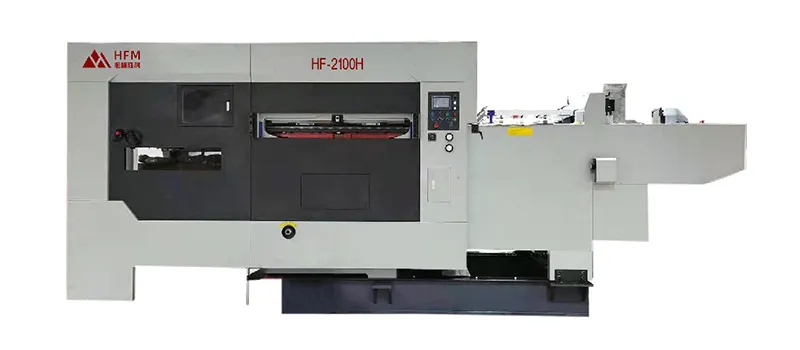

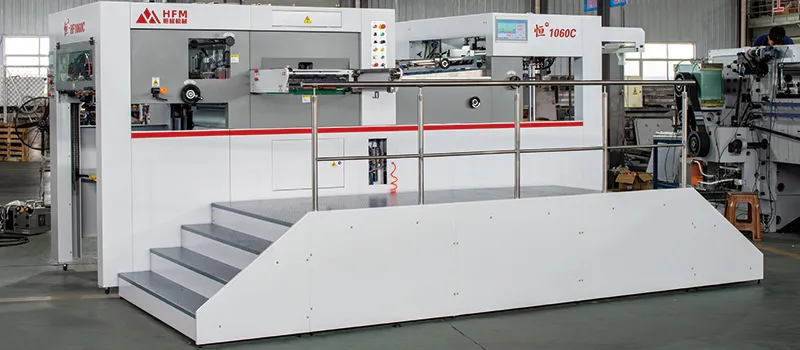

HFM's automatic flatbed die cutting and creasing machine is a cutting-edge solution for high-precision die-cutting, creasing, and embossing carton boards, cardboard sheets, PVC sheets, self-adhesive paper, and labels. Designed for efficiency, this machine is perfect for producing a wide range of packaging products, from high-end cosmetic boxes to durable packaging for everyday goods.
It also integrates an automatic system that precisely feeds materials such as corrugated cardboard, paperboard, and PVC sheets to the die-cutting station. The pressure applied by the upper and lower flatbeds drives the cutting lines of the die, quickly shaping materials into predefined shapes. The machine's robust construction ensures consistent, high-quality output, perfect for producing a range of packaging solutions.

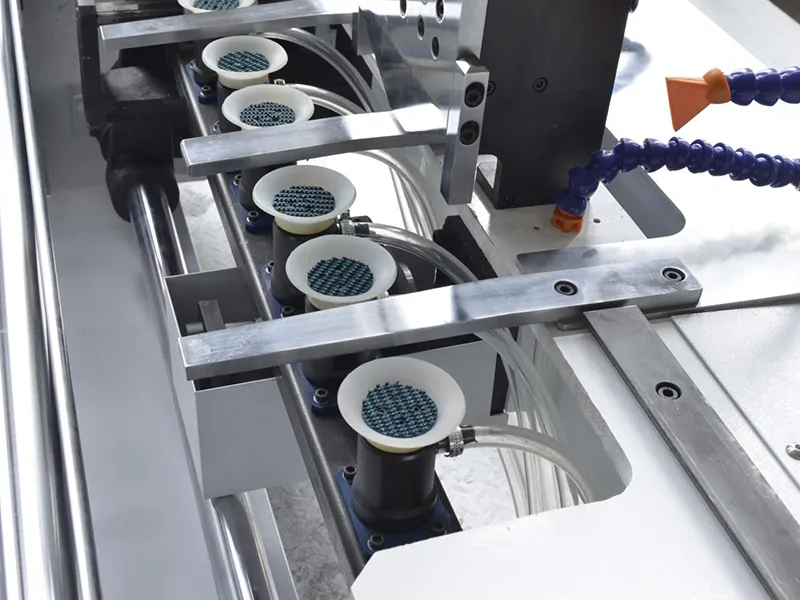

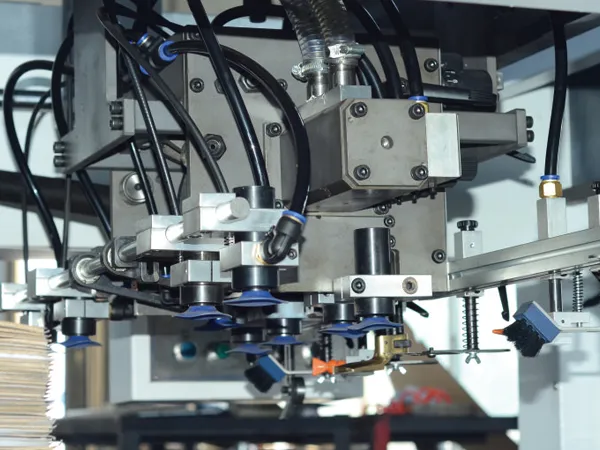

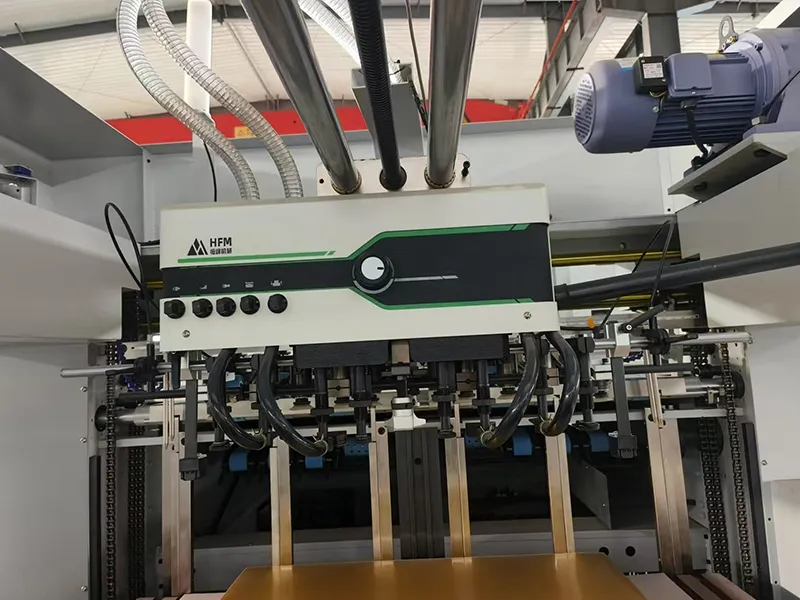

Equipped with a high-precision four-suction, six-feed roller system, this feeder is designed to handle thin paper and various materials. The system includes a brush and rear air-blowing mechanism to ensure stable and aligned feeding. The electric auxiliary paper collection system allows for non-stop production, while the pneumatic sampling mechanism enables quick checks without halting the operation.

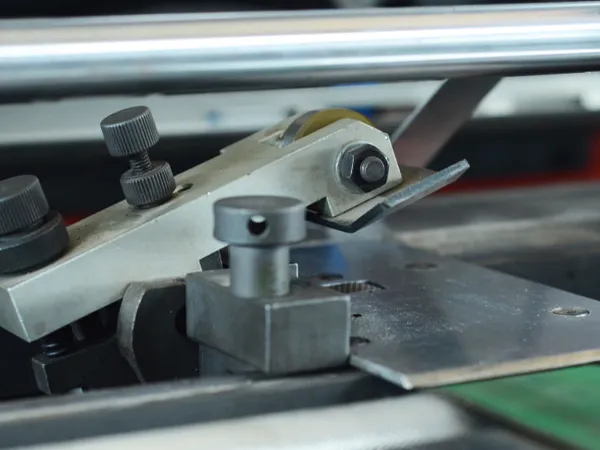

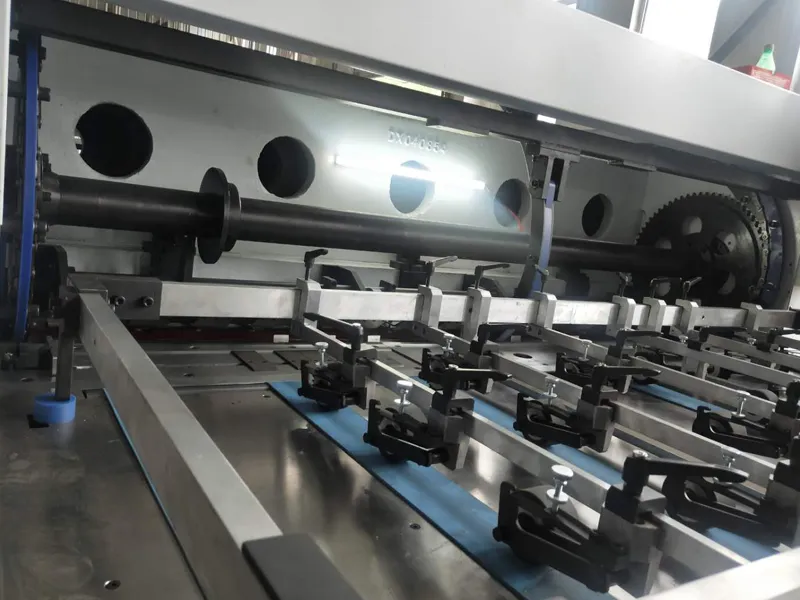

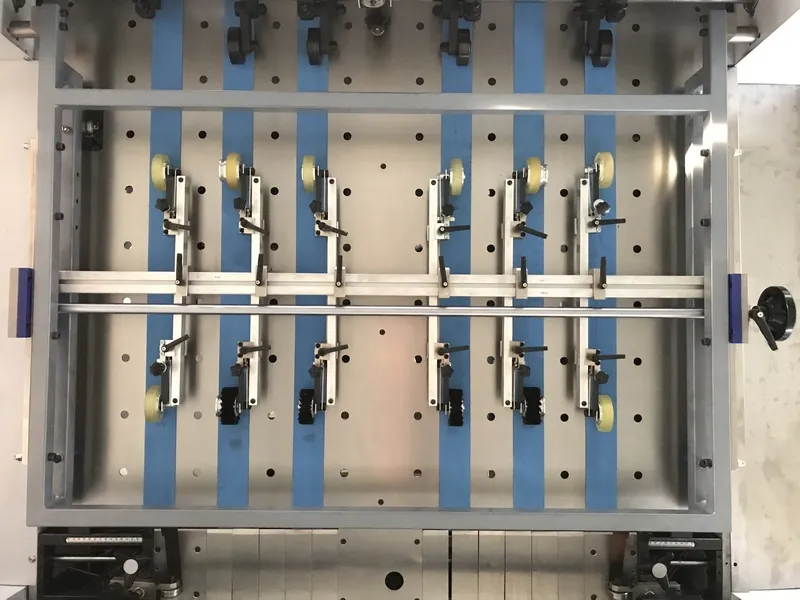

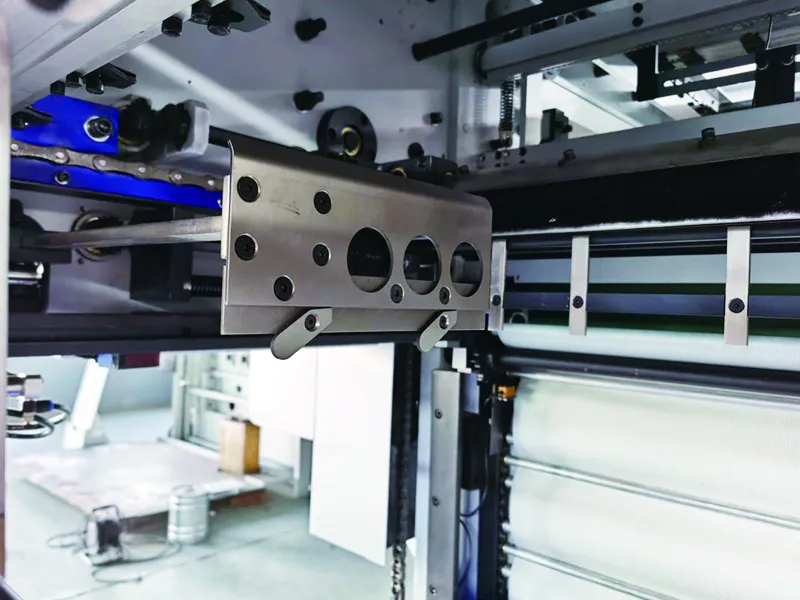

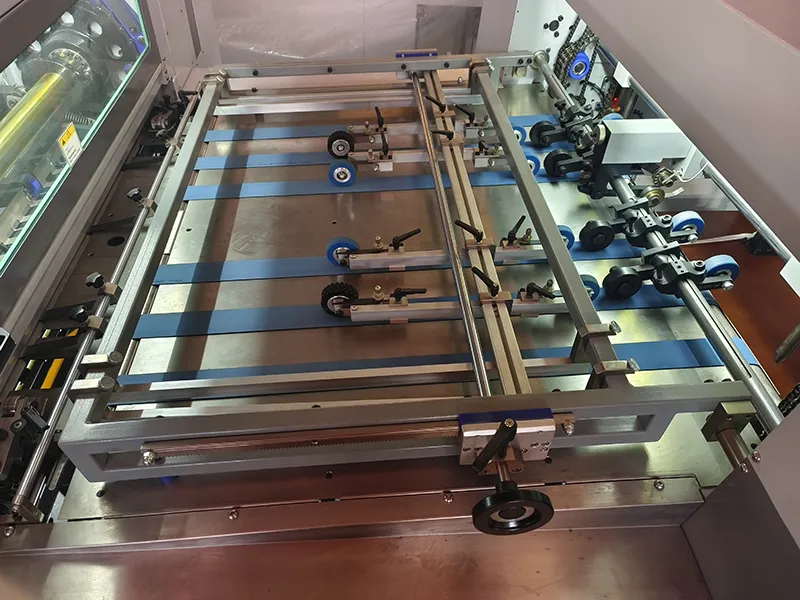

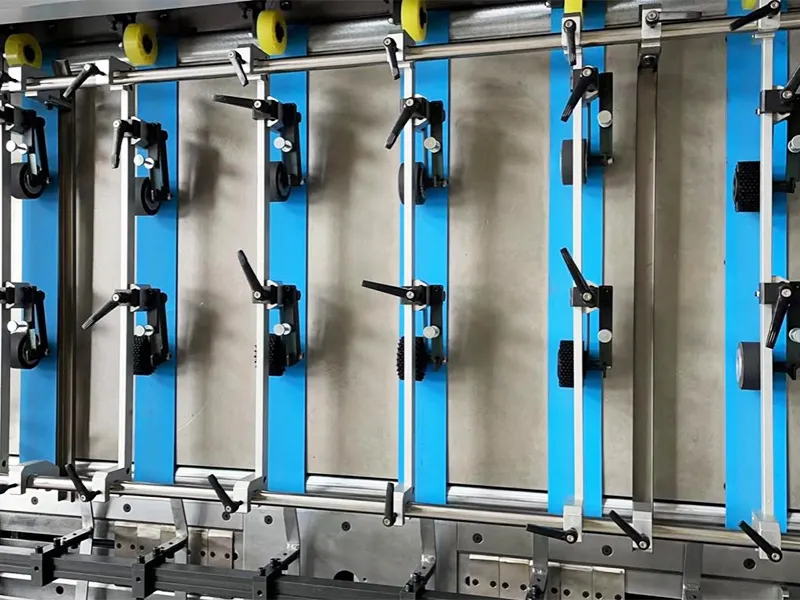

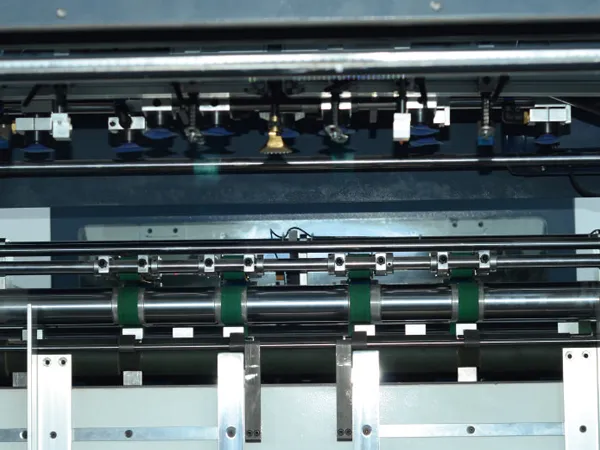

The feeding table features a push-pull side lay system that guarantees precise paper alignment at high speeds. The quick-adjustment mechanism enhances workflow efficiency, ensuring smooth, uninterrupted paper feeding for maximum productivity.

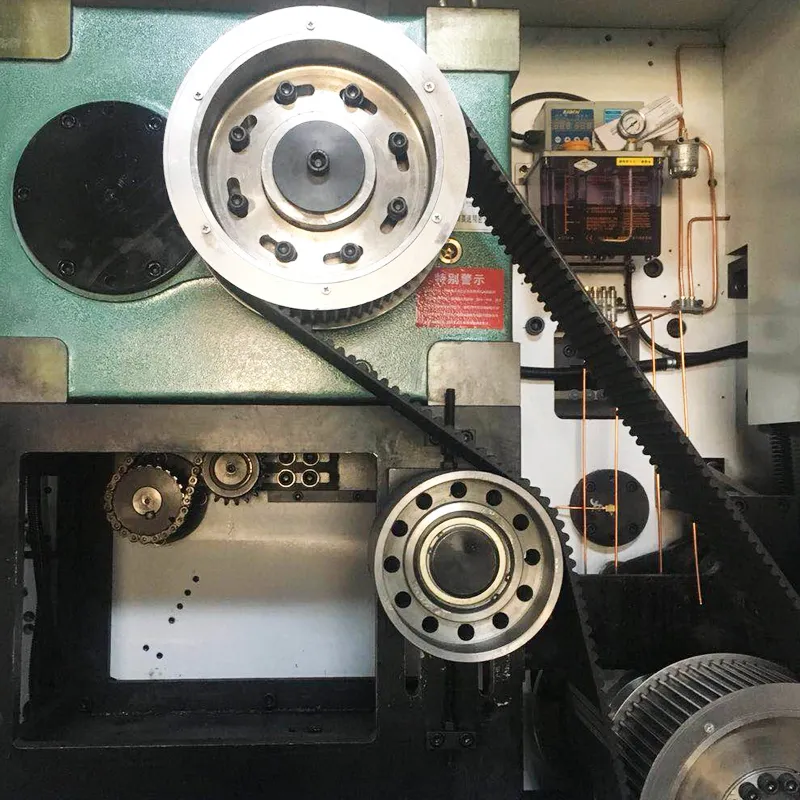

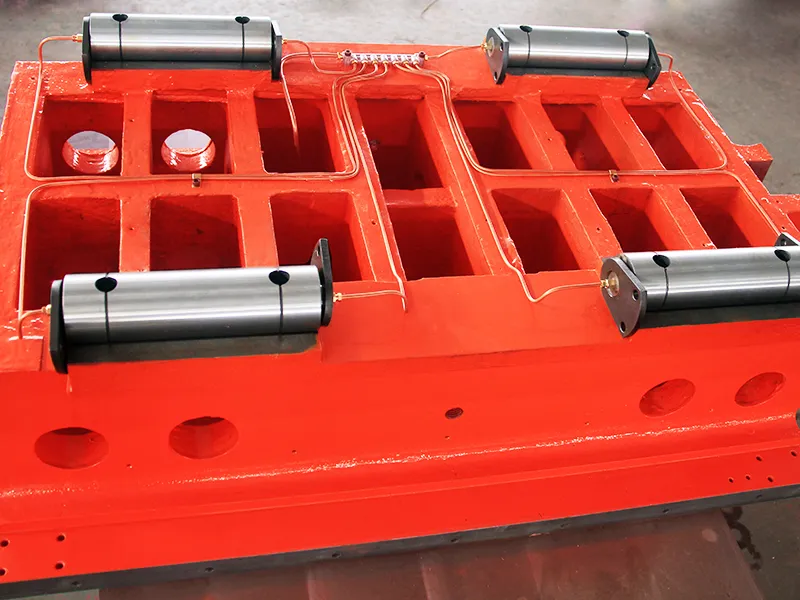

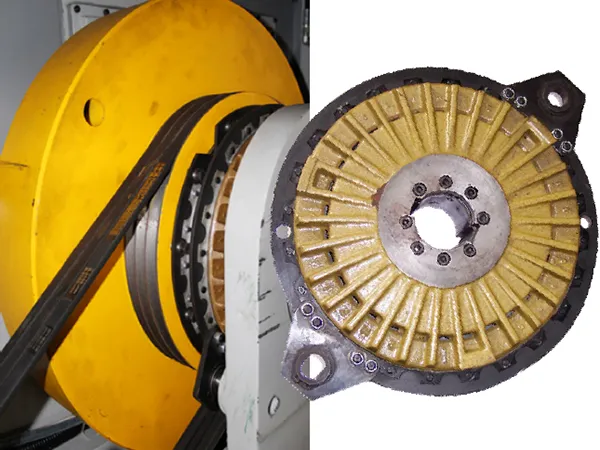

Equipped with an electric pressure adjustment system, the die-cutting station features a safety protection system for the die-cutting plate frame and includes a torque overload protection device for safe and stable operation.

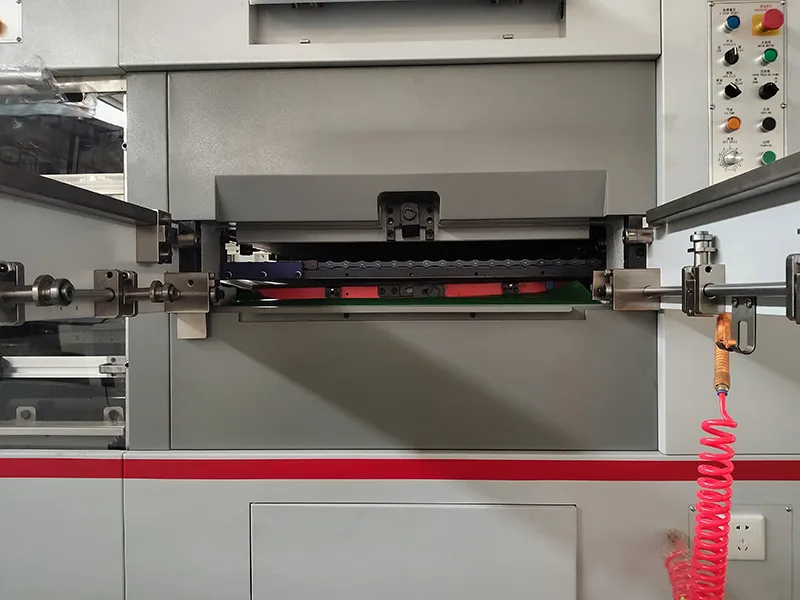

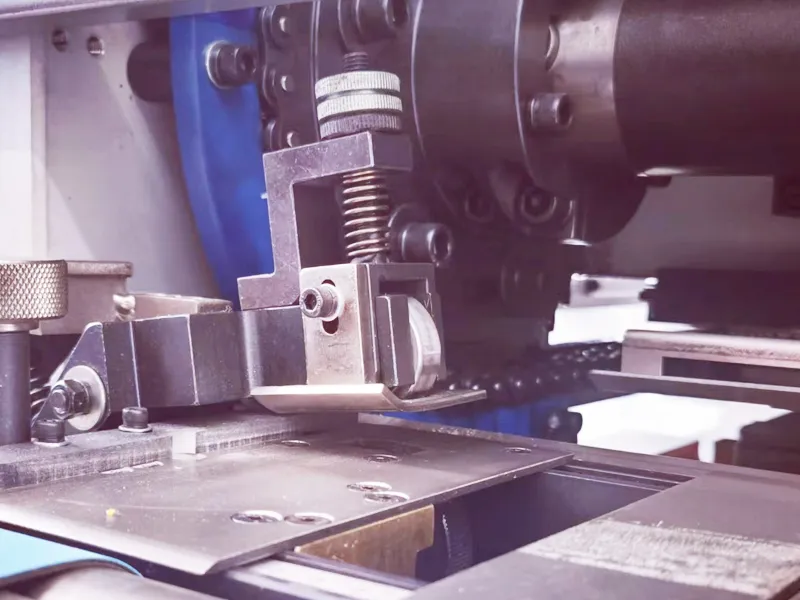

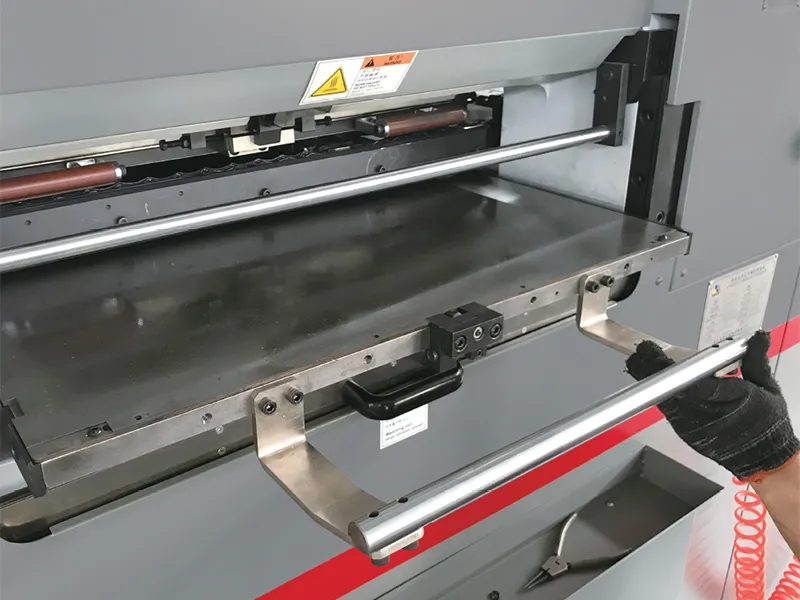

The micro-adjustment mechanism allows for quick correction of the cutting plate, facilitating faster alignment of the bottom mold. This feature improves operational efficiency by reducing setup time and ensuring more precise die cutting.

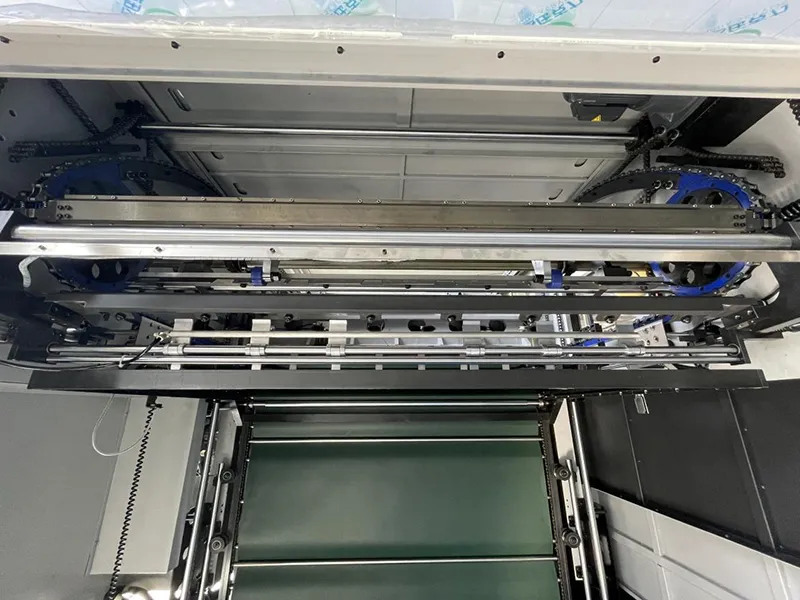

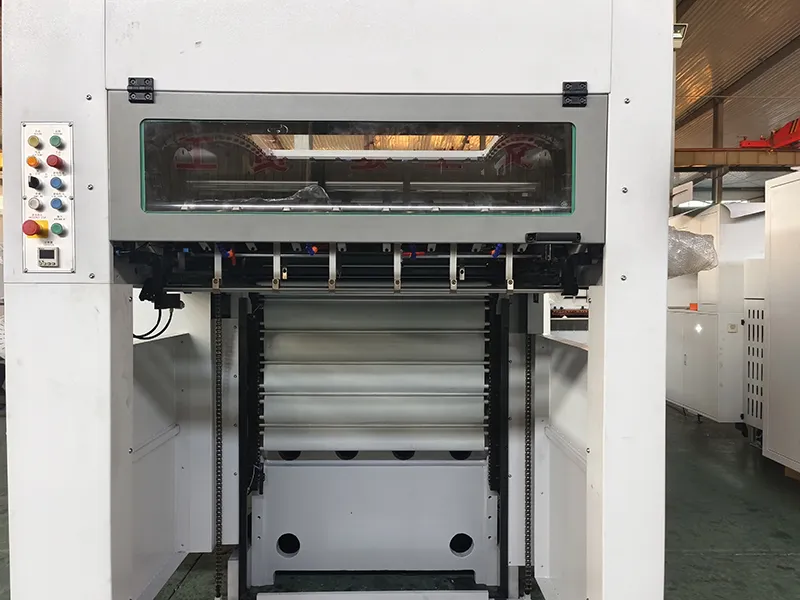

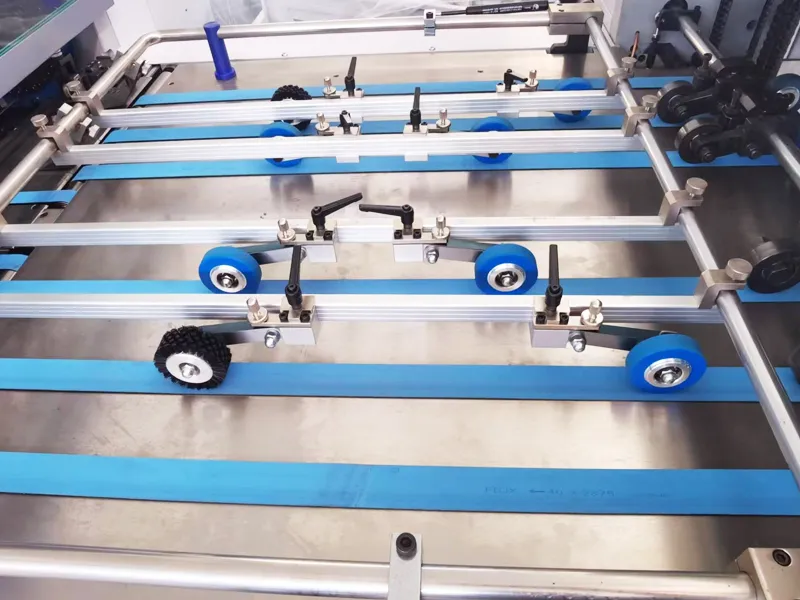

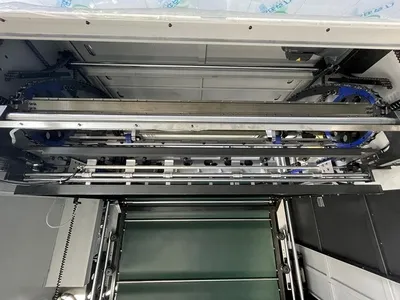

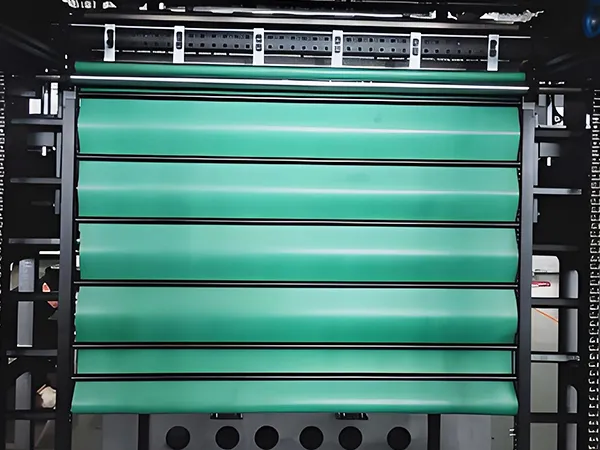

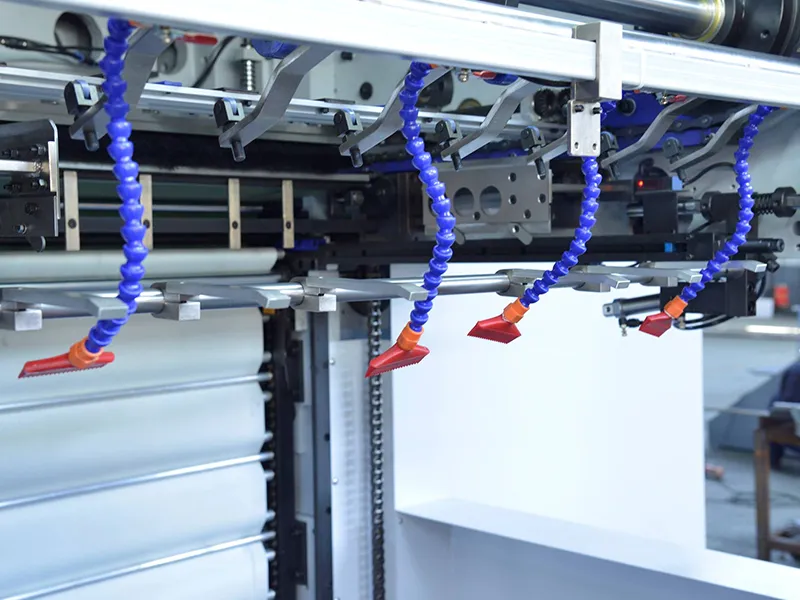

The delivery station uses a combination of brush and rear air-blowing systems to maintain stable paper alignment. It features an electric auxiliary paper collection system for continuous production and a pneumatic sampling mechanism for real-time checks without interrupting operations. Additionally, an optional tab insertion counting function is available for further operational convenience.

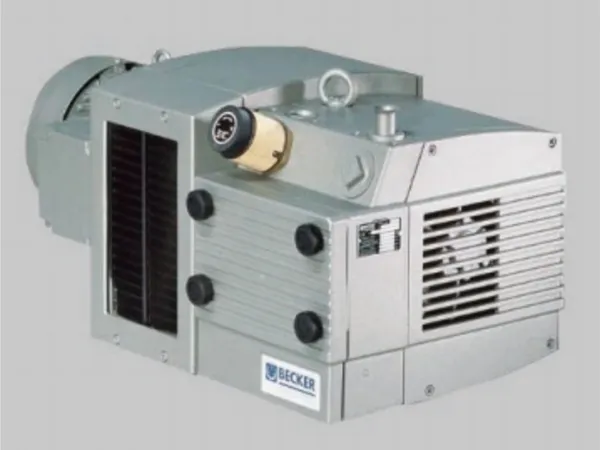

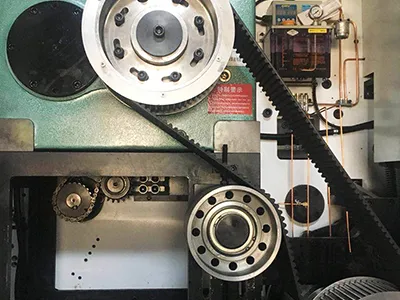

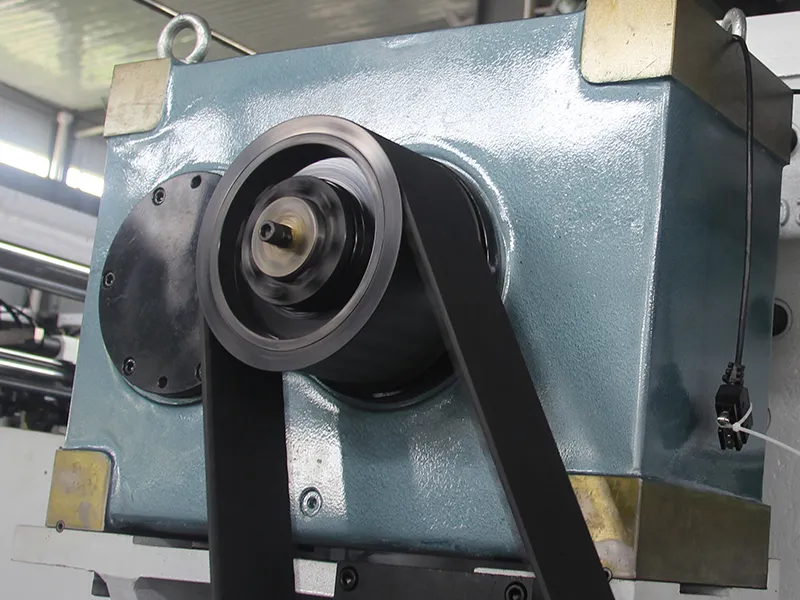

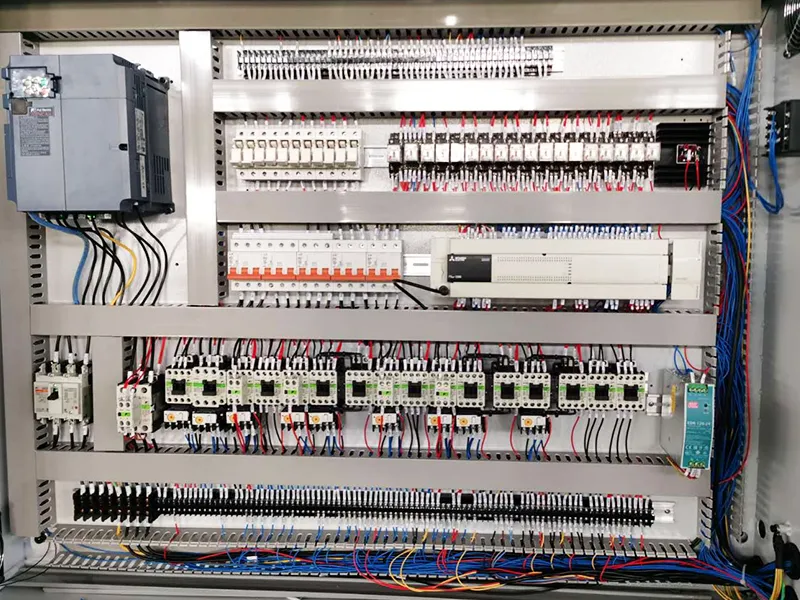

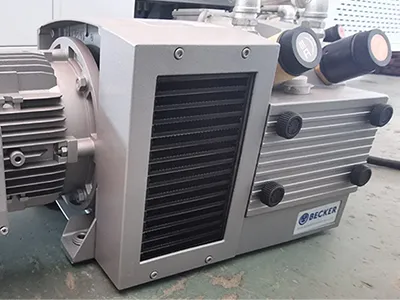

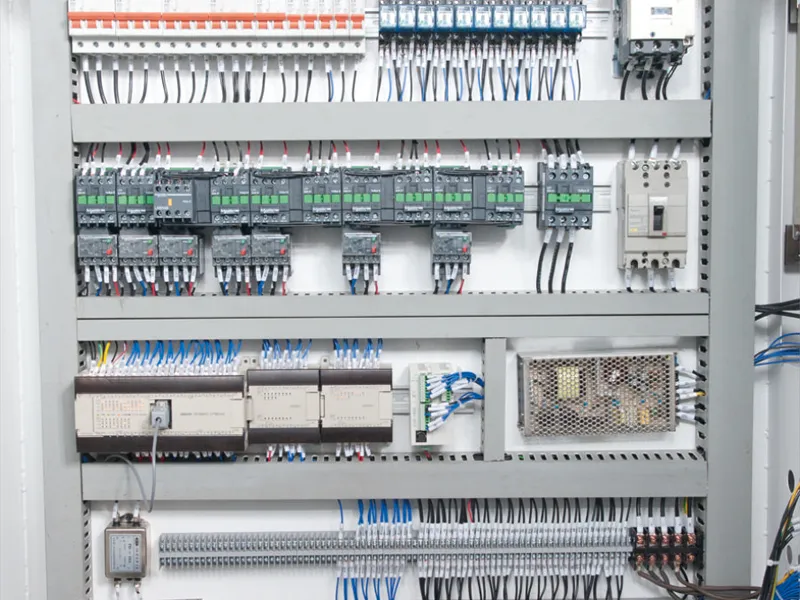

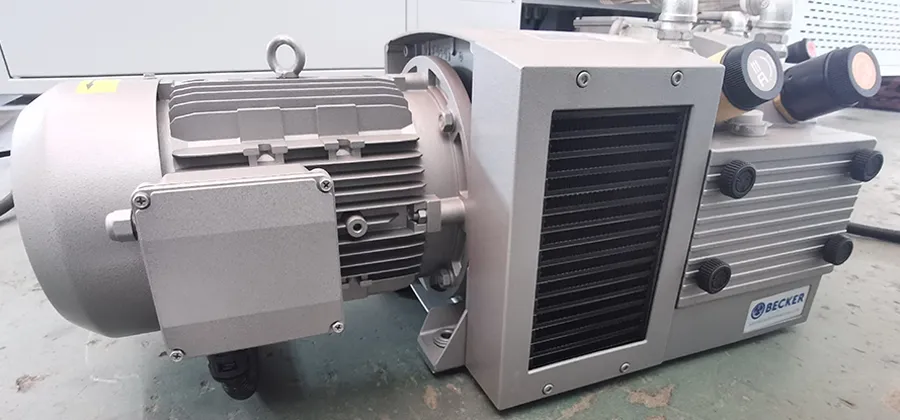

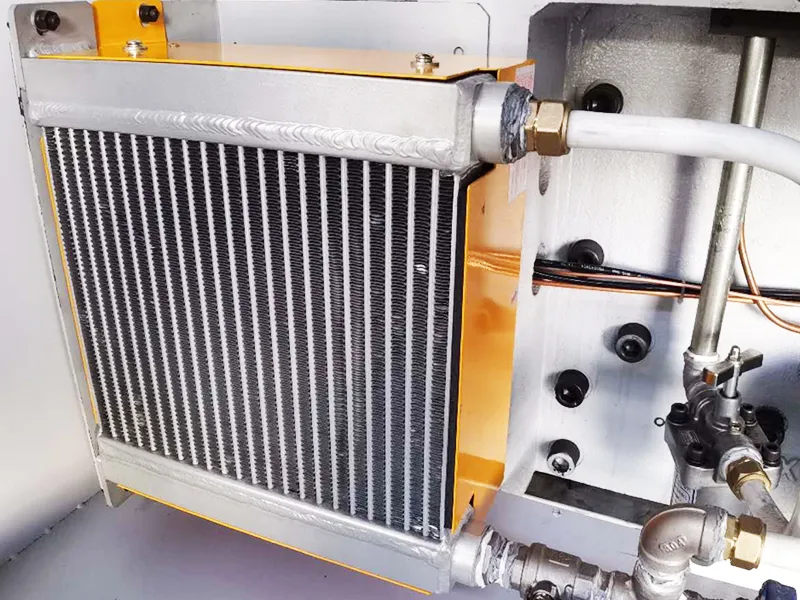

The machine utilizes a BECKER vacuum pump from Germany, renowned for its precision. The electrical and transmission components are sourced from internationally recognized brands such as ABB, SMC, iWiS, Siemens, Mitsubishi Electric, Fuji Electric, YASKAWA, OMPI, and BECKER to ensure die-cutting accuracy and operational reliability. The electrical components are housed in a temperature-controlled enclosure, cooled by industrial air conditioning, ensuring optimal and continuous performance.

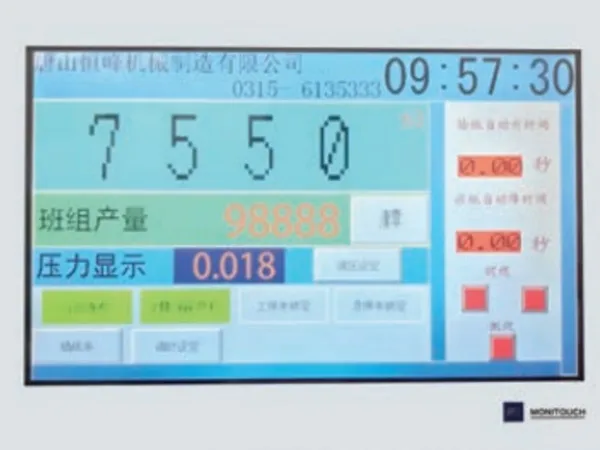

The HMI interface allows operators to monitor real-time machine status, display error notifications, and access troubleshooting methods. This feature simplifies operation and enhances user convenience, ensuring smooth workflow management.
To maintain optimal performance and longevity of your machine, we recommend using genuine HFM consumables. We offer a complete range of high-quality replacement parts: Brush wheel, suction cup, rubber wheel, sheet separator, drive belt/feed rollers, gripper bar, gripper opener.
We provide die-cutting and hot stamping solutions for printing, packaging, and manufacturing industries, ensuring precision and efficiency in every production process.
We provide a variety of die-cutting equipment for printing companies, packaging companies, manufacturing companies, and more. Our die-cutting equipment uses cutting-edge stable components from well-known international companies, such as frequency converters from Swiss ABB, programmable controllers and human-machine interfaces from Japanese Fuji, relays and circuit breakers from Japanese Omron, IDEC (Izumi), and Schneider, motors from German Siemens, paper conveying belts from Japanese NITTA, chains from German IWIS, bearings from Japanese NSK, and others. This ensures our equipment has higher accuracy (±0.1mm ~ ±0.075mm), and we provide comprehensive after-sales service.
A fully automatic flatbed die-cutting with stripping unit integrates both die-cutting and stripping functions in a single unit, and the waste will be stripped quickly and accurately after cutting. A semi-automatic flatbed die-cutting machine usually only provides the die-cutting function; for the stripping function, an additional stripping unit or manual stripping is required.
HFM’s die-cutting equipment uses components from well-known international brands to ensure reliable and stable operation. These include ABB inverters from Switzerland; programmable controllers and HMI interface from Fuji, Japan; relays, circuit breakers, and other electrical components from Omron, Izumi, and Schneider; motors from Siemens in Germany; flat belts for paper feeding from NITTA in Japan; chains from IWIS in Germany; and bearings from NSK in Japan. All of these components help guarantee stable machine performance.
A fully automatic flatbed die cutting machine is equipped with an integrated fully automatic system; and materials such as cardboard, corrugated board, and film are fed accurately to the die-cutting station. An automatic die cutter utilizes the upper and lower flat plates that can handle up to 350T of pressure, while the system drives the cutting rules on the die to cut the material into the preset shapes quickly.

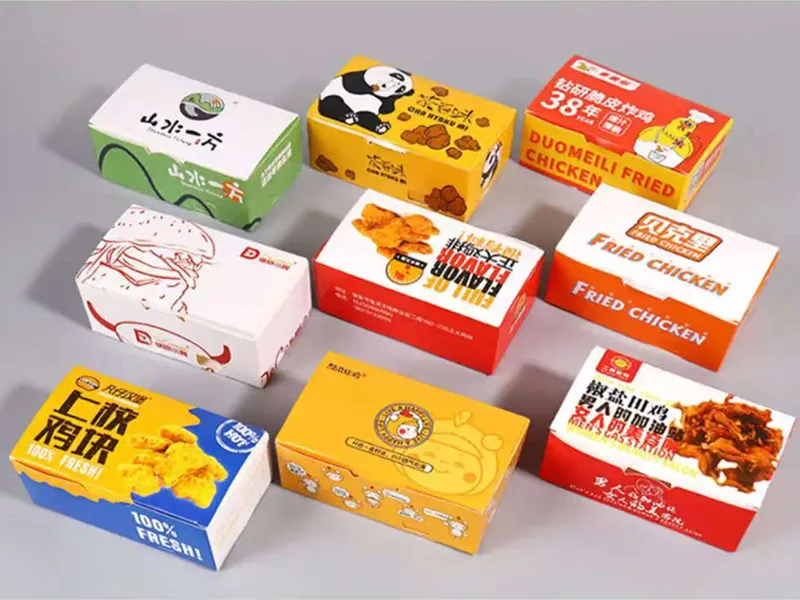

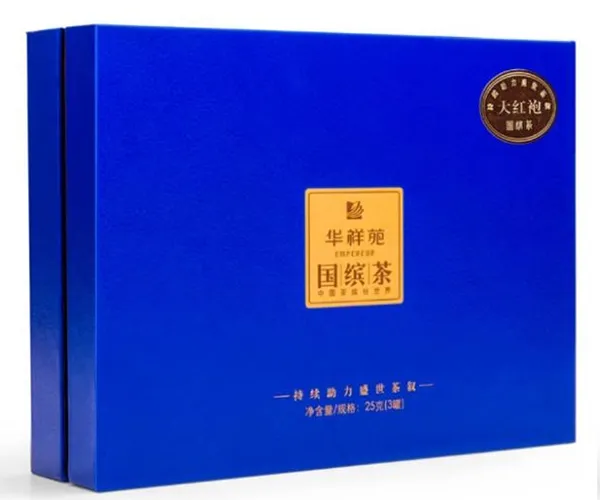

An automatic flatbed die cutter is a key equipment for die-cutting, creasing, and cold embossing of various paper-based packaging and decoration products such as cartons, boxes, and labels. It is widely used for producing pressure-sensitive label stock, cosmetic boxes, cigarette boxes, wine boxes, tea boxes, pharmaceutical packaging, food packaging, gift boxes, and more.
Die cutting equipment is commonly used for materials such as film, pressure-sensitive label paper, grey board, cardboard, corrugated board, and more.
